Apache Kafka

​

Overview

​

Supported Identifiers/Attributes

​

Prerequisites

• Kafka Broker Host – This is the hostname and port of the Kafka broker. This information is typically specified in the server.properties file under the listeners property in the Kafka installation directory or provided by the administrator managing the Kafka cluster. For example, broker1.example.com:9092.
• Broker API Key – This is the API key used to authenticate with the Kafka broker. This credential is usually obtained from the administrator or through the Kafka management interface of the cloud provider, such as Confluent Cloud or AWS MSK.
• Broker API Secret – This is the API secret paired with the Broker API Key for authentication. This is also provided by the administrator or available in the Kafka management interface of the cloud provider.
• Data Format – This specifies the format in which the data is sent from Zeotap CDP to Kafka. Currently, AVRO and JSON formats are supported. If you choose AVRO, then you need to provide the following additional details. In addition, ensure that the fields defined as mandatory in your schema registry are mapped to valid columns that contain data, under Destination Mapping in Zeotap CDP. Otherwise, it might result in destination failure.
  • Require for Schema Registry URL – This is the endpoint URL of the Schema Registry service, available during setup or in the Kafka deployment’s configuration settings. For Confluent Cloud, this information is listed in the “Schema Registry” section of the dashboard.
  • Schema Registry API Key – This is the API key required to access the Schema Registry. This key can be obtained from the administrator or generated in the “API Keys” section of the Schema Registry management interface in Confluent Cloud.
  • Schema Registry API Secret – This is the secret corresponding to the Schema Registry API Key, available in the same section as the API Key or provided by the administrator.
• Topic Name - This acts as a label for organising and identifying the grouped data in Kafka. Ensure that you configure the Topic in kafka along with its attributes, before using it in Zeotap CDP. For example, if the Topic Name is “Topic 1”, then the associated information grouped under it might include attributes such as First Name, Last Name and Email.

​

Destination Setup

​

Add New Destination

1

Click + Add New Destination.

2

Search for Kafka.

3

Click Kafka and enter a name for the Destination.

4

Provide a Connection Name to the configuration of the Kafka connection in Zeotap CDP.

5

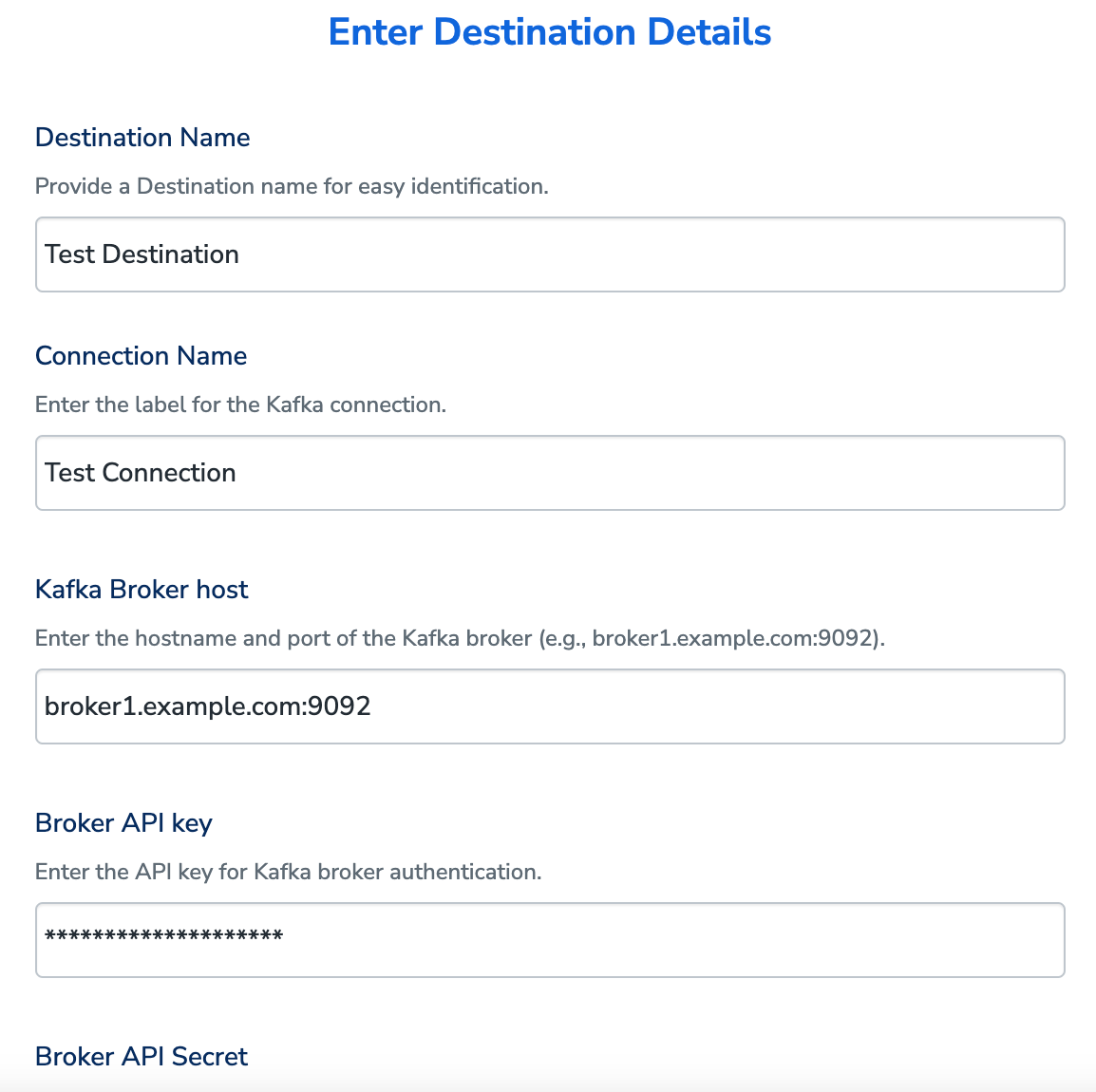

Enter the Kafka Broker Host, Broker API Key and Broker API Secret, obtained from your Kafka account, as mentioned in the Prerequisites section.

6

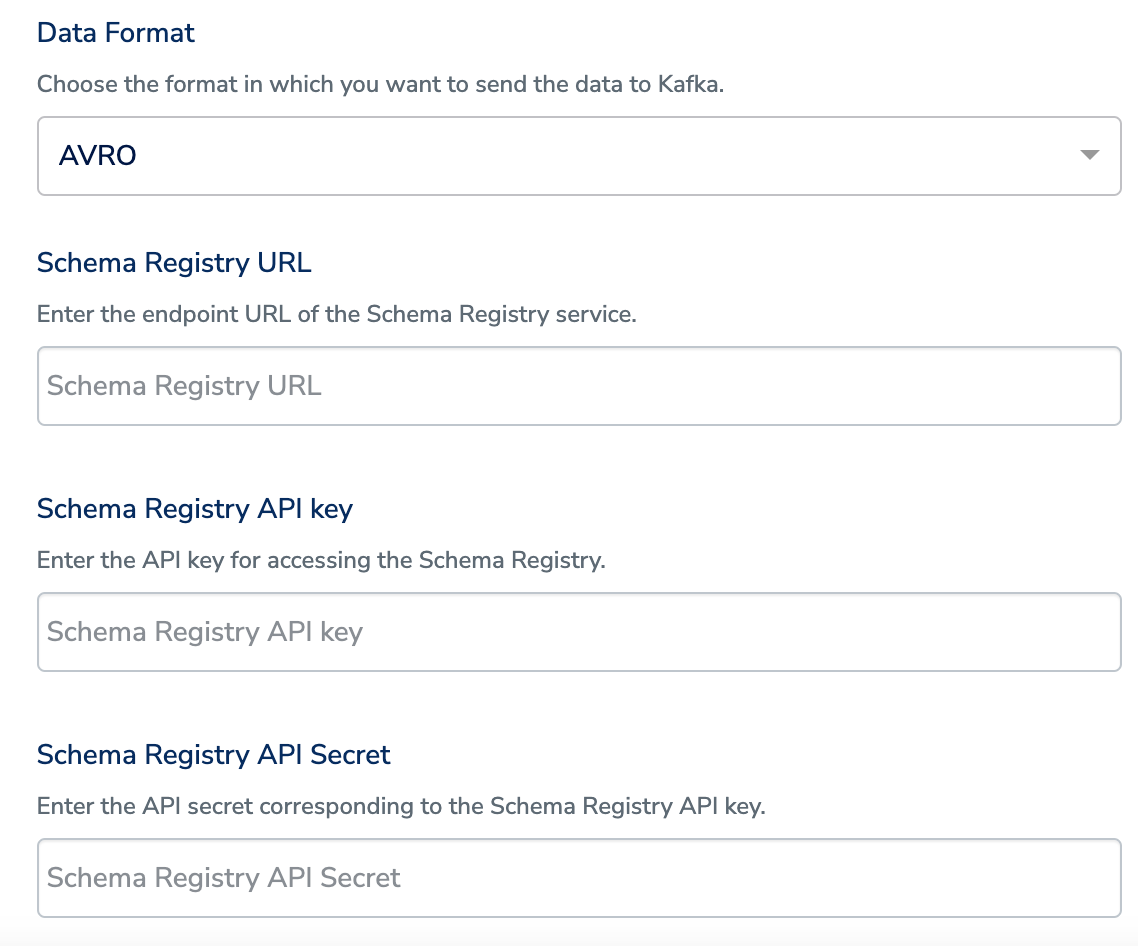

Under Data format, you can either choose AVRO and JSON format to send the data to Kafka.a. If you choose AVRO, then enter the Schema Registry URL, Schema Registry API Key and Schema Registry API Secret obtained from your Kafka account, as mentioned in the Prerequisites section.

b. If you choose JSON, then no additional steps are required. You can directly proceed to Actions and Mapping.

7

Review the fields entered above and click Next.

8

In the mapping screen that appears, under Choose your Action, select Send data to Kafka as the action for sending data from the workflow created in Journeys.

9

Under Map the Fields, use + Add Mapping Field to add any number of identifiers and attributes you wish to send to Kafka. However, ensure that you have configured the Topic along with the attributes in Kafka before mapping it in Zeotap CDP. Ensure that the fields defined as mandatory in your schema registry are mapped to valid columns that contain data, under Destination Mapping in Zeotap CDP. Otherwise, it might result in destination failure. You can use the drop-down option against each field to choose the data type for your attribute or identifier and map the corresponding Catalogue fields to the Destination fields. If you choose Objects or List of Objects, then you must also map the object properties below the object, as shown below. For more information about how to use the Objects, List of Objects in your mapping, refer here.

ExampleIf the payload to you want to sent to Kafka is the following JSON, then the mapping screen appears as shown below:

10

Once the mapping is complete, click Create Destination. The destination is created and made available for activation on Journeys.

​

Activate the Destination on Journeys

1

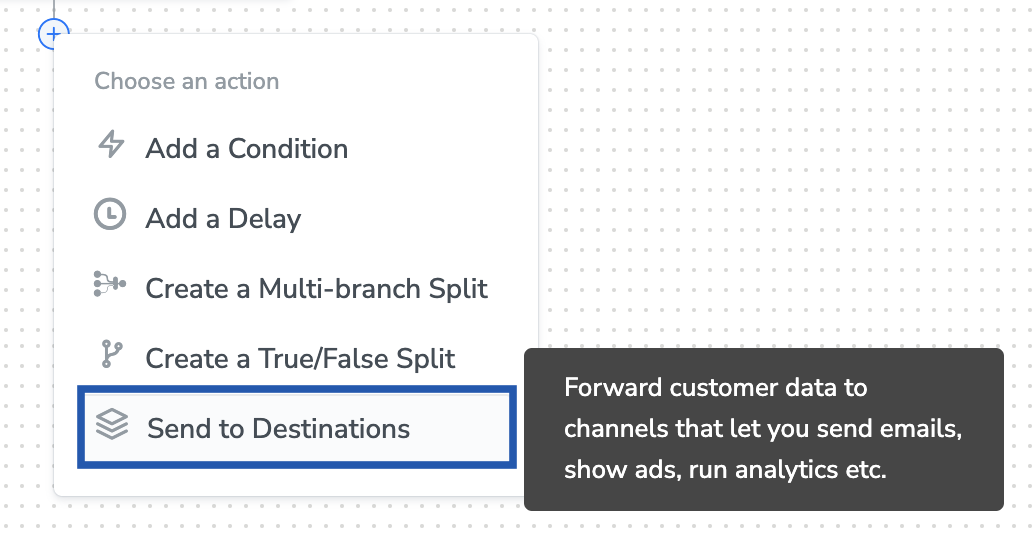

In the workflow, click + and choose Send to Destinations.

2

Choose the destination from the list of available destinations by using the search feature.

3

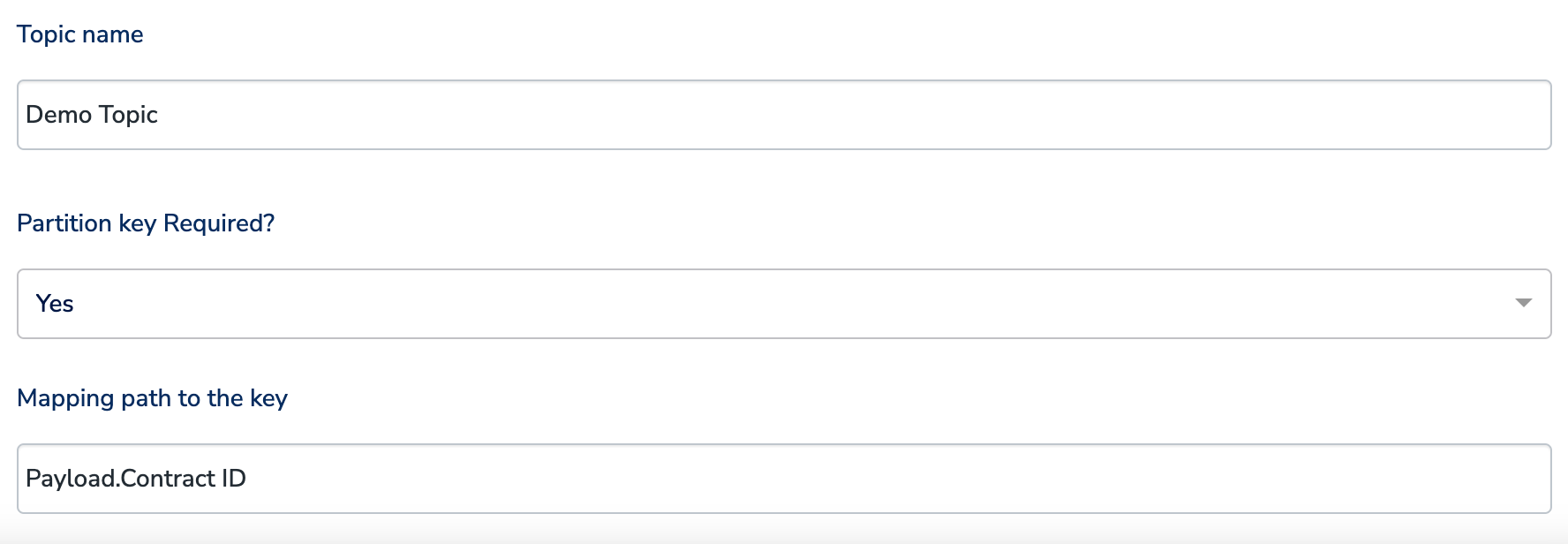

Under the Destination Details tab, the Connection Name, Kafka Broker Host, Broker API Key, Broker API Secret, Schema Registry URL, Schema Registry API Key and Schema Registry API Secret fields are automatically populated based on the value that you had entered while creating the destination. However, you need to enter the Topic name and choose whether Partition key is required or not by using the drop-down under Partition Key Required?a. If you select Yes, then enter the name of the attribute to use as the partition key in the Mapping path to the key text box. Select an attribute that determines how data partitions occur when the incoming data exceeds the data size limit.

Note:*To use a property of an Object as the partition key, enter the attribute name provided in the Destination field (Right hand side) in the format objectname.attributename. For example, if an object named p- ayload includes properties such as Contract ID, Contract Start Date, and Contract End Date, and you want to use Contract ID as the partition key, then enter payload.ContractID in the Mapping path to the key text box. Note that the value for the partition key is case sensitive.

b. If you select No, then you can directly proceed to the Destination Settings tab.

4

Under the Destination Settings tab, choose the Action and mapping as per your requirement.

5

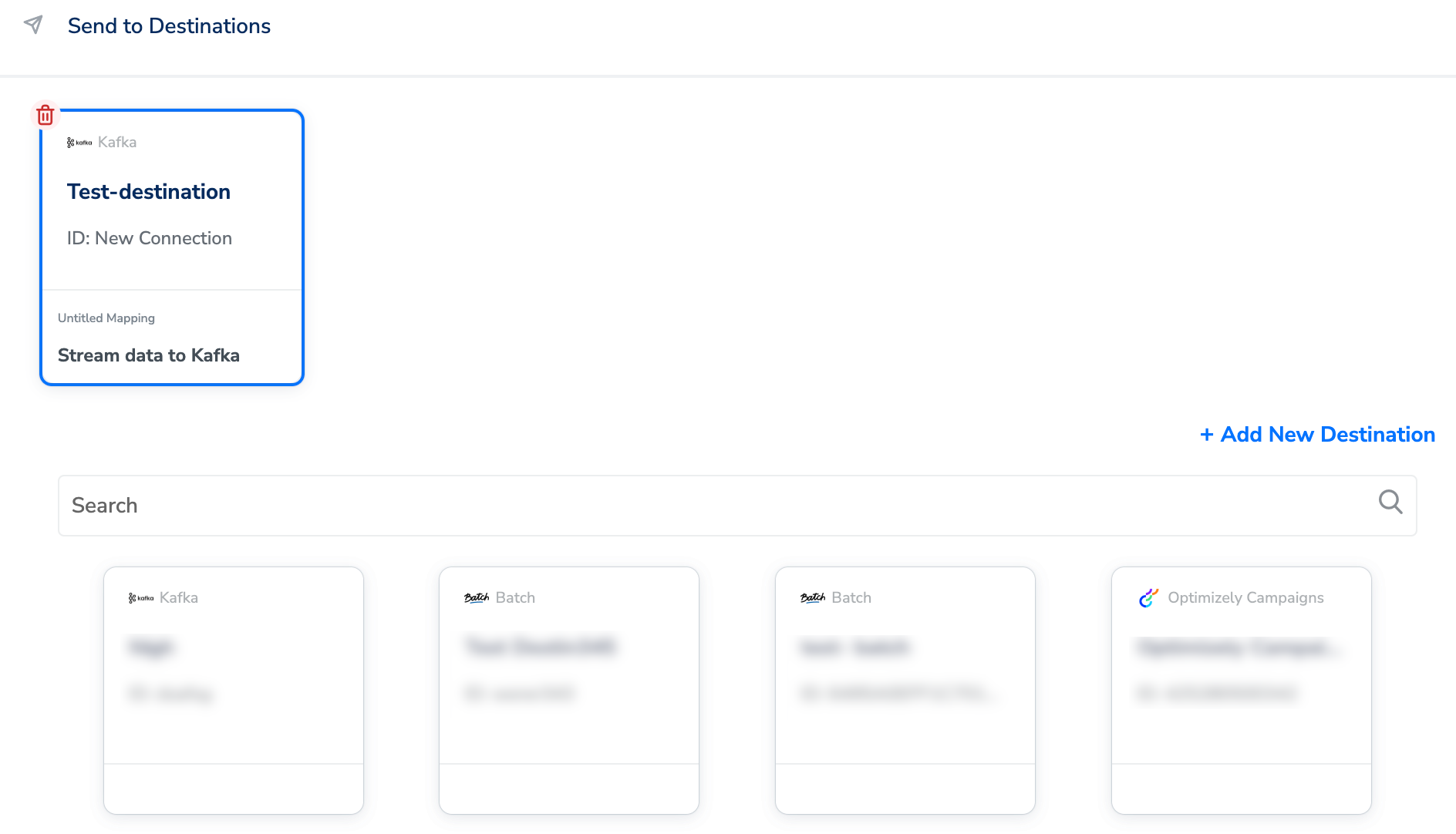

Upon clicking Save Destination. The destination is attached as shown in the image below.

6

Click Add Destinations. You can also add multiple destinations at this step if needed.

7

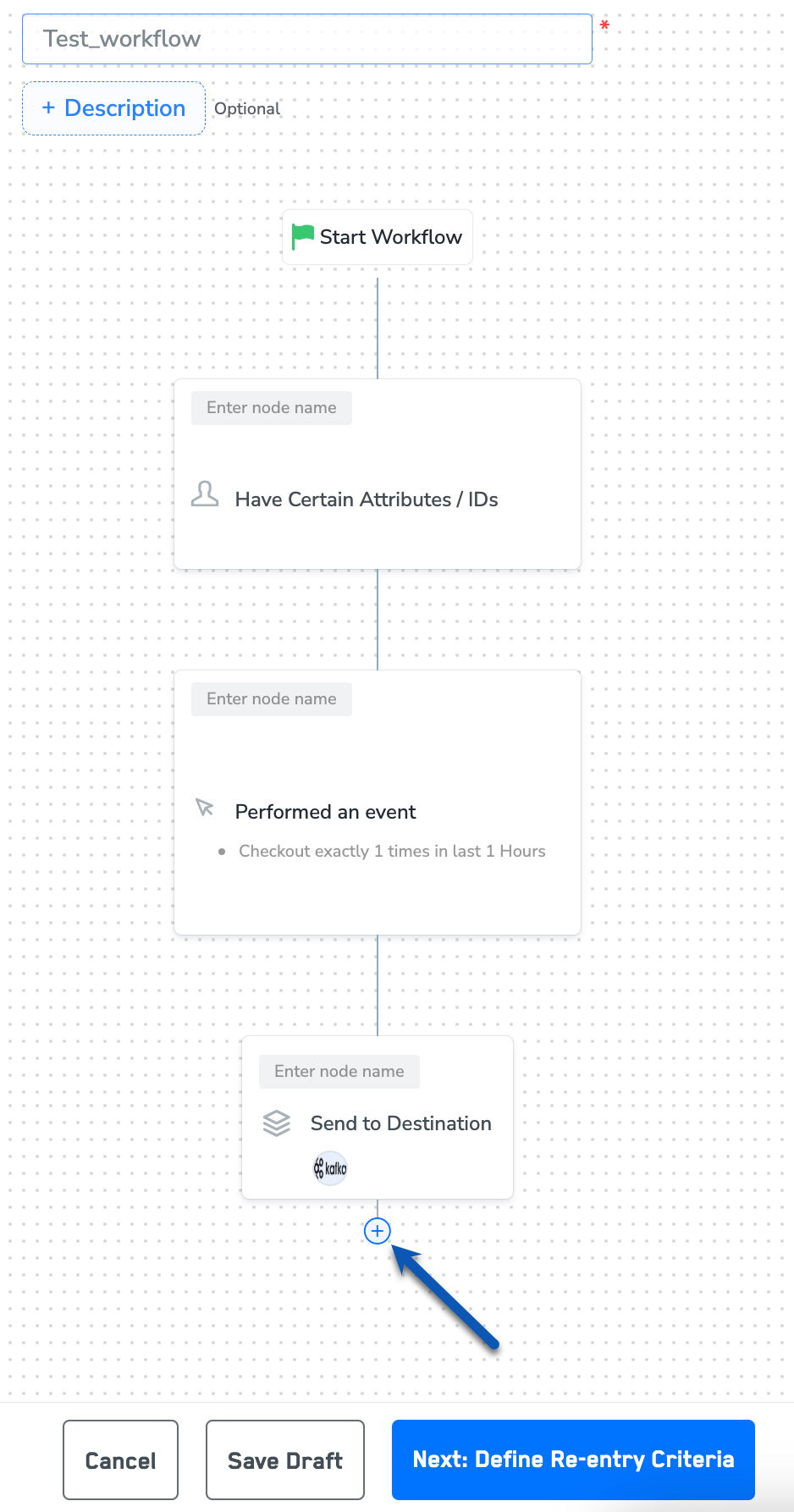

The linked Destinations appear in the Send to Destinations node within the workflow as shown below. Further, you can then build and customise your workflow as needed by clicking ’+’ . Note that you must enter a name for your workflow in the provided text box to save it.

8

After adding conditions and filters for users, choose one of the following options:

• Save Draft: Enables you to revisit and edit the workflow before publishing.
• Next: Re-entry Condition: Determines whether a user can re-enter the same workflow.

9

After defining the re-entry criteria, click Publish Workflow. The workflow appears in the Workflow listing screen with a Published status.
